Features:

·

World-class algorithm, high-speed and accurately identify fingerprint.

·

Fingerprint/Pin/Card authentication.

·

Suitable for the entrances and exits of office, factory, hotel, school, etc.

·

2.4 inch TFT screen 320x240 pixel.

·

USB Flash Drive Download

·

More helpful function like T9 input method, self-service inquiry, etc.

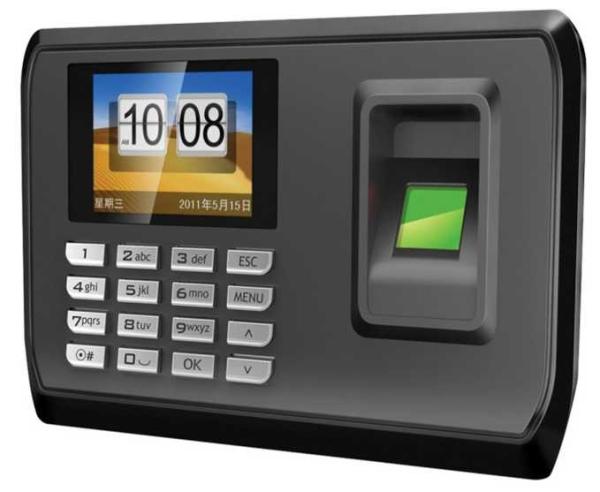

Model

H28

Fingerprint template capacity

1,000

Log capacity

100,000

RF card (optional)

125kHz EM / 13.56MHz IC

Access mode

Fingerprint or Password or Card or Fingerprint+Password

or Card+Password or Fingerprint+Card+Password

Interface

USB host

LCD display

2.4" TFT color screen 320x240 pixel

Voice instruction

16-bit Hi-Fi voice & sound indication

Language

English, Korean, Japanese, Thai, Chinese, etc.

Verification time

< 1 second [1:N]

FRR (False Rejection Rate)

< 1%

FAR (False Acceptance Rate)

< 0.0001%

Power source

5VDC/1A

Internal backup battery

Optional

Operating temperature

0℃-45℃

Operating humidity

<90%RH

Dimensions (mm)

170 x 122 x 36 mm

Weight (kg)

0.45

Quantity/Carton

10 units

Gross weight/carton (kg)

10.3

Carton size

275 x 270 x 230 mm

Quantity / 20ft container

13800 units

Box contents

C128

x 1 pc

Power adapter

x 1 pc

CD

x 1 pc
