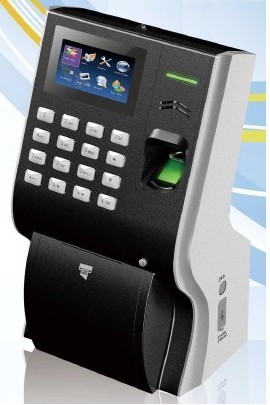

LP400 FINGERPRINT TIME ATTENDANCE WITH PRINTER

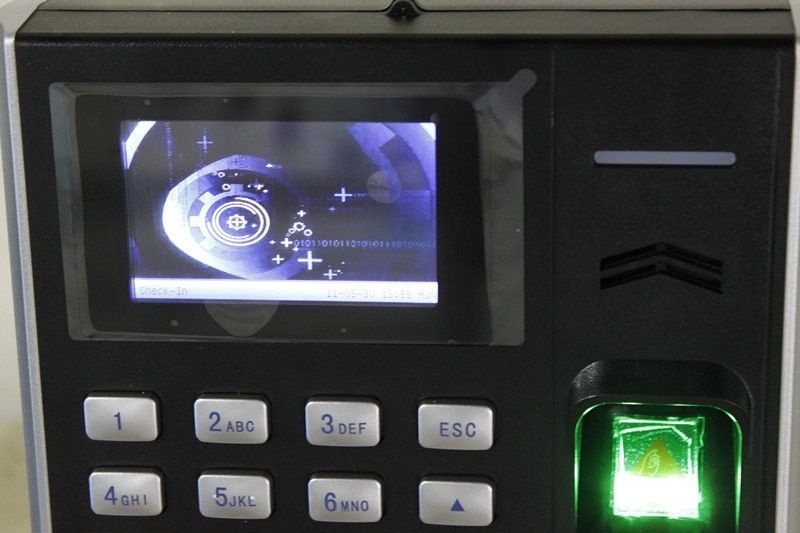

P40 is the latest fingerprint time attendance device with builtin thermal printer. The 3'' TFT can display more information vividly,

including fingerprint image quality and verification result etc. TCP/IP communication is standard and make sure the data transmission

between terminal and PC can be easily done within several seconds.

Function Features:

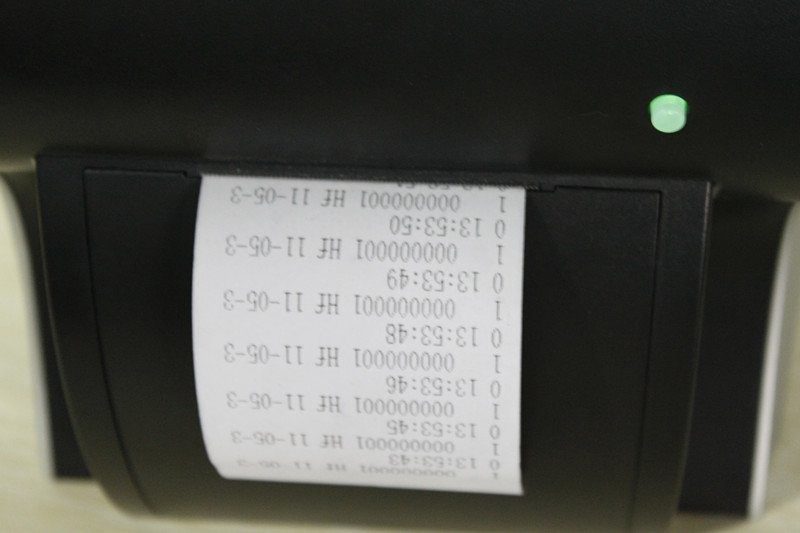

*Built-in thermal printer. Automatically print attendance
*Records in real time when checking attendance
*High-precision real-time clock.
*TCP/IP,RS232/485 communication function.
*Two USB HOST communication interfaces.

Electrical Specifications and Functions:
*Power: DC12V3A
*Printing Method: Direct Thermal Printing
*Operating Temperature: 0~40 C
*The Maximum Diameter of the Printing Paper: 80mm
*Operating Humidity: 10~80%
*The Width of the Printing Paper: 58±0.5mm
*Back-up Battery Operating Hour: 1~2h
*Effective Printing Width: 48mm
*Time Error of the Lock: ±1min/year
*Printing Density: 6dots/mm, 288dots/line
*Retention Time of the Lack After Blackout:>3000h
*Printing Speed: <=35mm/sec.
*Register Capacity: 3000
*Record Capacity: 100000

Reliability:

*Printhead Life: 50km

*Mean Character Between Failures(MCBF): 15million lines

Use Condition:

*Printing 12 24 western characters, intermittently repetitive printing.

*The printed dots in every point line simultaneously can not exceed 25%, the longitudinal repetitive printing at the

same point in every character row can not more than 11 times
